Privacy & Architectural Screen Systems
One screen line for every need — KorShield privacy screens for the backyard, modular architectural systems for commercial and rooftop applications. Laser-cut aluminum, wind-rated, and delivered nationwide.
One system, from backyard to rooftop
KorFab screen systems pair laser-cut architectural panels with a durable, modular structural system — extruded posts, mechanically fastened base plates, and corrosion-resistant hardware. The result is a single product line that scales from a single KorShield privacy screen hiding a pool pump to a 482-panel hospital facade.
Thoughtfully designed to support code compliance and long-term performance, the system lends form and function to rooftop amenity spaces, mechanical equipment enclosures, pool decks, fencing, and exterior partitions.
Bringing architectural metal into a project early? Explore KorFab's architectural metal collaboration →
Modular Heights
4′, 6′, 8′, or 10′ post-and-panel systems that adapt to any site.
Wind-Rated
Posts rated to 60 PSF (96″) and 31 PSF (120″) for exposed locations.
Custom Patterns
Choose from our KorShield library or bring your own CAD, sketch, or logo.
Nationwide Delivery
Fabricated in Phoenix, AZ and shipped anywhere in the U.S. in about a week.
Screens in the field

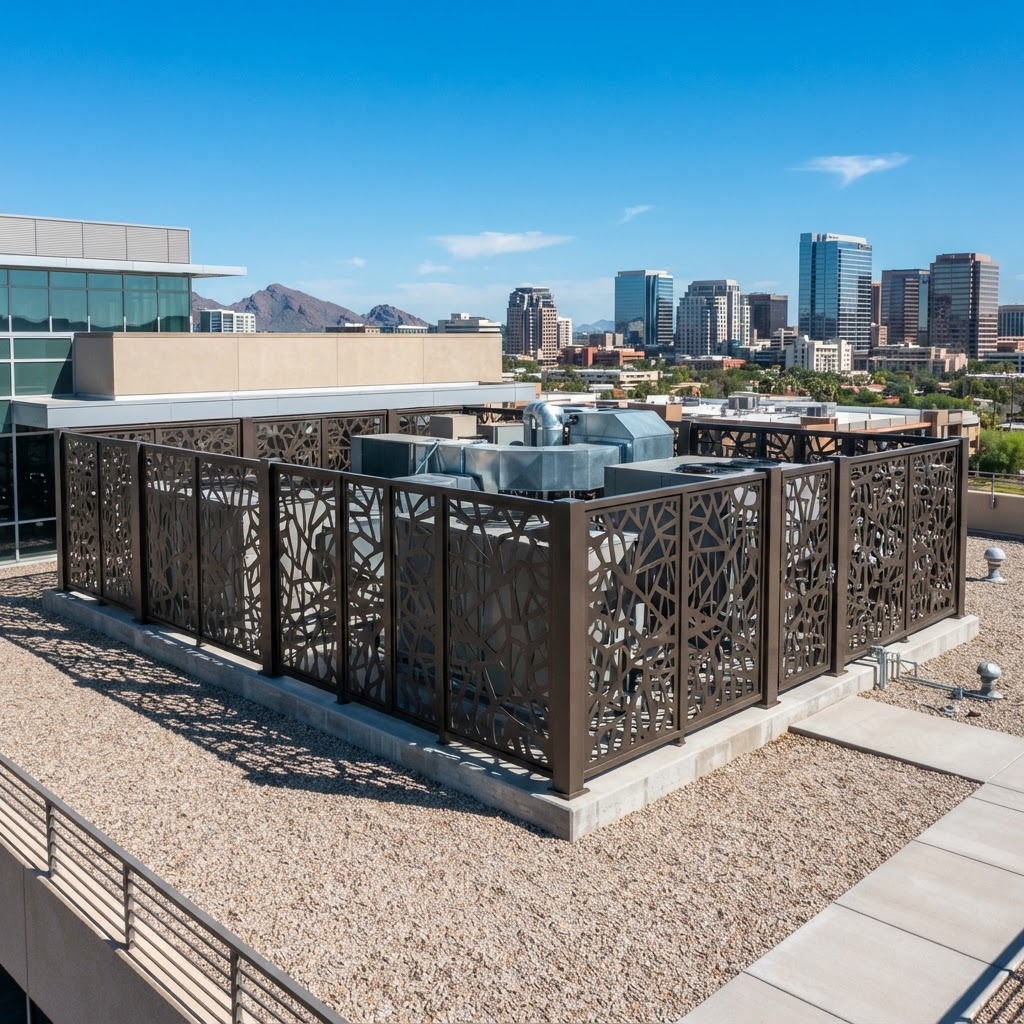

Scale up for commercial & rooftop
The same panel language, built for larger footprints, code compliance, and high-wind exposure.

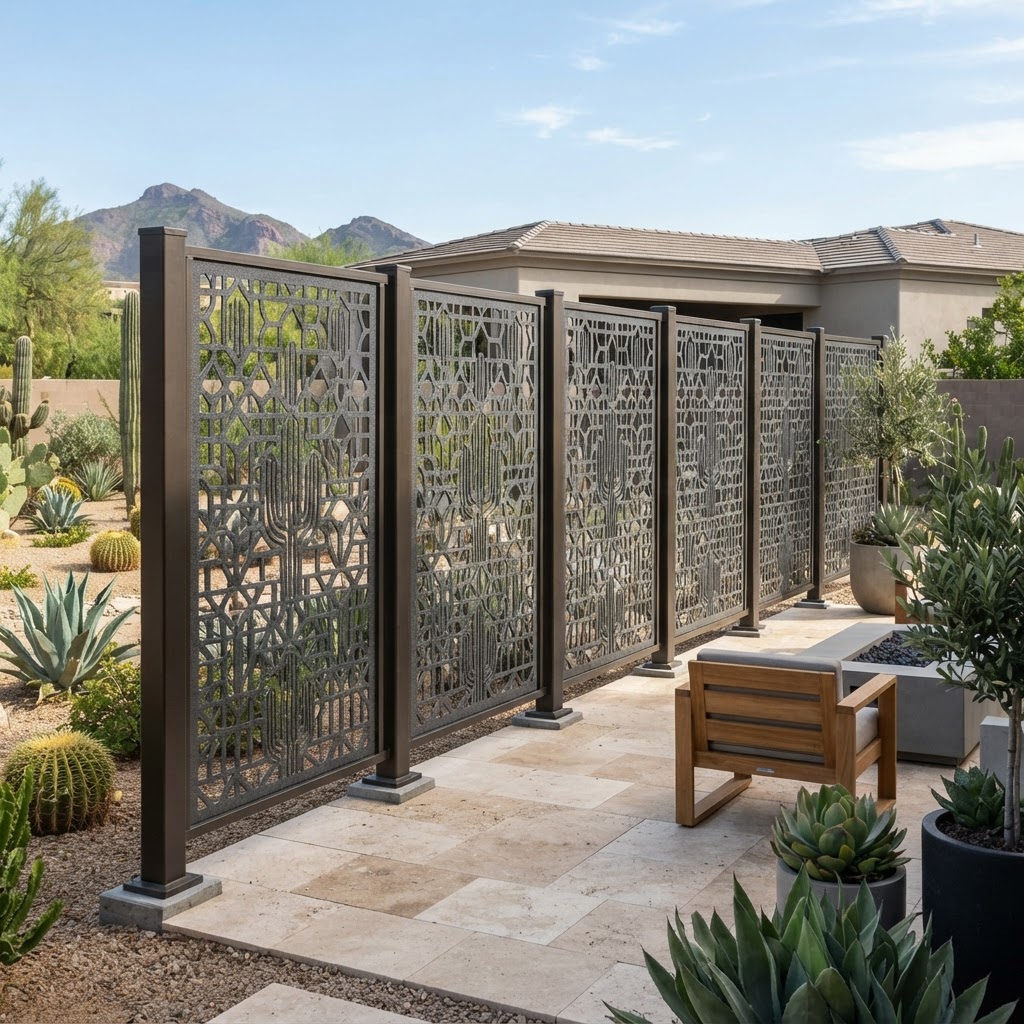

Versatile Size Systems
A modular approach to architectural screen panels, making it easy to tailor your design to the environment. Available in heights up to 4′, 6′, 8′, or 10′ with multiple mounting and finish options.
- Heights up to 4′, 6′, 8′, or 10′
- Modular post-and-panel construction
- Multiple mounting and finish options

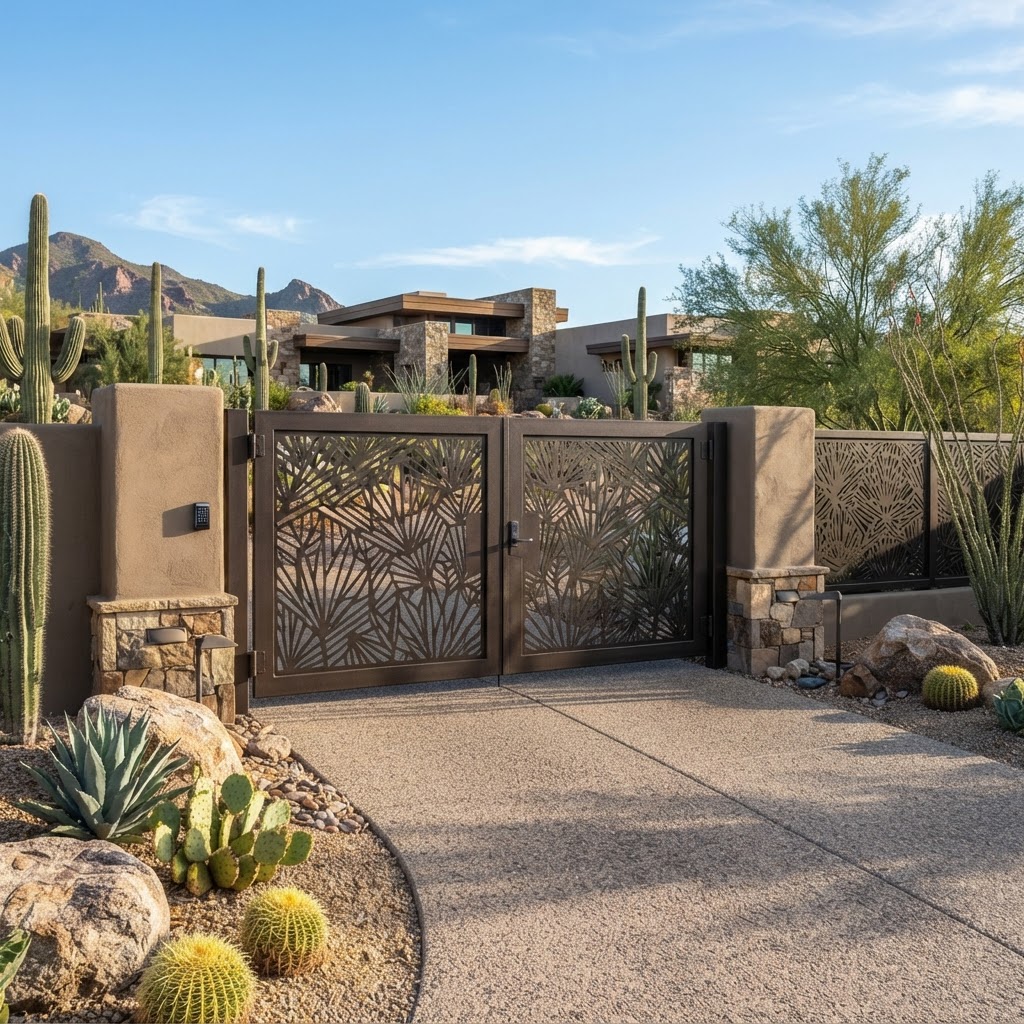

Gate Systems
Single or double gate solutions in heights from 4′ to 8′, with pattern and finish matched to the associated screen system for a seamless, code-compliant entry.
- Single or double gates
- Heights 4′ to 8′
- Pattern and finish to match
Built for structural performance
Our screen systems are built for increased structural performance with a refined post design and mechanically fastened connections. Expanded load capacity allows confident use across a broader range of screen heights and site conditions — ideal for high-wind regions and exposed locations.
60 PSF
Posts up to 96″
31 PSF
Posts up to 120″
All-aluminum, corrosion-resistant construction
Suitable for interior or exterior applications in almost any environment.
Three ways to mount
Pre-drilled panels and hardware for straightforward installation — no onsite welding or fabrication.
Inset Mount Brackets
An expressed element that standardizes installation, increases corrosion resistance, and enhances the overall aesthetic. Brackets come in standard frame finishes, matched to the post color.
Standoff Mount
Brackets designed for vertical panel mounting with ultimate field tolerance and the cleanest panel-face aesthetic. Panels float off the posts for a dimensional, architectural effect.
Direct Mount
As simple as it gets — the appropriate fastener for your substrate with pre-drilled panels for even spacing and painted screw heads that coordinate with the panel finish.
Architectural panel pricing examples
Pricing varies based on material, pattern complexity, quantity, and finish. Here are real project numbers to help you budget — click any project to see the full case study.
Phoenix Children's Hospital
- Material
- 1/8″ Aluminum
- Quantity
- 482 Panels
- Finish
- No Finish
- Pattern
- Complex
- Duration
- 8 Weeks
- $/SF
- $9.30
Valleywise Behavioral Health Center
- Material
- 1/4″ Aluminum
- Quantity
- 3 Panels
- Finish
- Powder Coat
- Pattern
- Standard
- Duration
- 2 Weeks
- $/SF
- $39.80
Renegade Clubhouse, Cave Creek
- Material
- 1/8″ Aluminum
- Quantity
- 40 Panels
- Finish
- Powder Coat
- Pattern
- Complex
- Duration
- 4 Weeks
- $/SF
- $22
Historical project data. Actual pricing varies — request a quote for an exact estimate.
Frequently asked questions
What heights are available for screen systems?
KorFab screen systems are available in heights up to 4′, 6′, 8′, and 10′, with modular post-and-panel construction that adapts to a variety of project scales and site conditions.
Are the screen systems wind-rated?
Yes. Our screen systems are built for increased structural performance with refined post design and mechanically fastened connections. Posts up to 96″ are rated to 60 PSF, and 120″ posts to 31 PSF — suitable for high-wind regions and exposed locations.
Can screen systems include gates?
Yes. Single or double gate solutions are available in heights from 4′ to 8′, with pattern and finish matched to the associated screen system for a seamless look.
What are screen systems typically used for?
Rooftop amenity screening, mechanical and equipment enclosures, pool deck privacy, fencing, and exterior partitions. The systems bring lasting clarity to complex architectural needs.
What are KorShield privacy screens made of?
KorShield panels are 1/8″ thick high-quality aluminum — lightweight, easy to handle, and highly corrosion resistant, cut on a 6KW laser for precise edges. Posts are 2″ × 2″ 1/8″ steel connected to 1/2″ thick, 6″ × 6″ base plates with two 1/2″ anchor holes. All material is covered with a high-quality powder coat color of your choice.
Do you deliver outside of Arizona?
Yes. KorFab fabricates in Phoenix, Arizona and ships screen systems nationwide. Most orders are ready to ship in about a week.
Privacy & Architectural Screen Systems for your area
Cut, finished, and inspected in our Phoenix, Arizona shop — then palletized and shipped to your jobsite, anywhere in the U.S. Most orders are ready to ship in about a week.
Find your city
Ready to specify your screen system?
From a single KorShield privacy screen to a full commercial run — share your project details and we'll deliver a precise quote.
