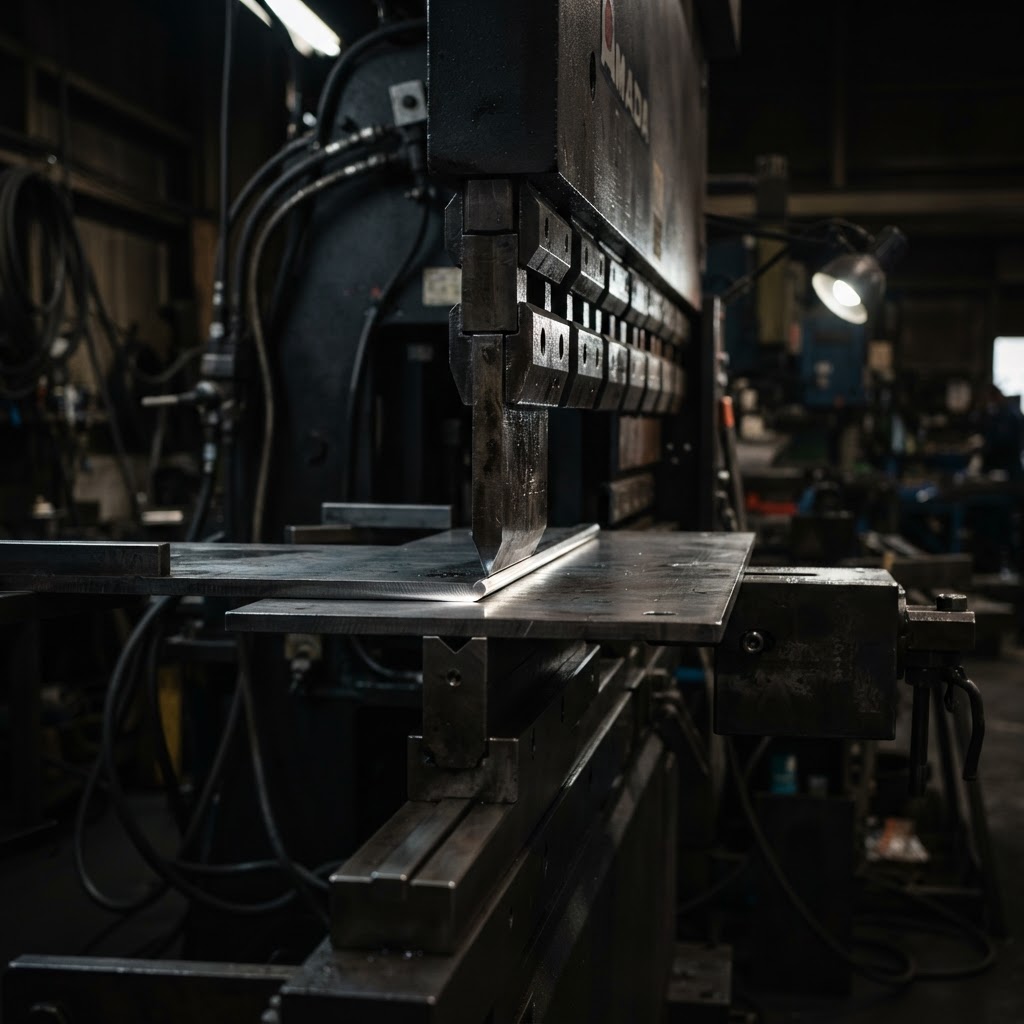

Mitsubishi ADIRA PA 13530
135 metric ton CNC hydraulic press brake with 118 inch bending length
Specifications
The Mitsubishi ADIRA PA 13530 is a 135 metric ton CNC hydraulic press brake built for accurate bending and forming of structural components, brackets, panels, enclosures, and custom sheet and plate parts. Its 118 inch bending length supports a wide range of production and made to print fabrication requirements.
- Press Force
- 135 metric tons (approx. 149 US tons)
- Bending Length
- 3,000 mm (118 in)
- Distance Between Frames
- 2,550 mm (100.4 in)
- Max Ram Stroke
- 260 mm (10.2 in)
- Open Height
- 500 mm (20 in)
- Throat Depth
- 400 mm (16 in)
- Motor Power
- 15 kW (approx. 20 HP)
- Approach Speed
- 150 mm/s
- Working Speed
- 10 mm/s
- Return Speed
- 100 mm/s
- Backgauge X Axis
- 625 mm (24.6 in)
- Backgauge R Axis
- 200 mm (7.9 in)
- Optional Z1/Z2 Travel
- 2,150 mm (84.6 in)
- Approx. Machine Weight
- 9,100 kg (20,000 lbs)
Supported Materials
SteelStainless SteelAluminum
Supported Profiles
Flat plateSheet metal
Operations
- CNC press brake bending
- CNC crowning
- Y1 and Y2 synchronized ram control
- X and R axis backgauge positioning
- Repeat forming
- Off center bending
Ideal Projects
- Brackets and structural components
- Panels and enclosures
- Made to print parts
- Custom sheet and plate forming
