Equipment Screening Systems
Architectural metal screening for HVAC, mechanical, and rooftop equipment — laser-cut panels that allow airflow while blocking the view. Wind-rated, heights to 10′, fabricated in Phoenix, AZ.
Screening that breathes

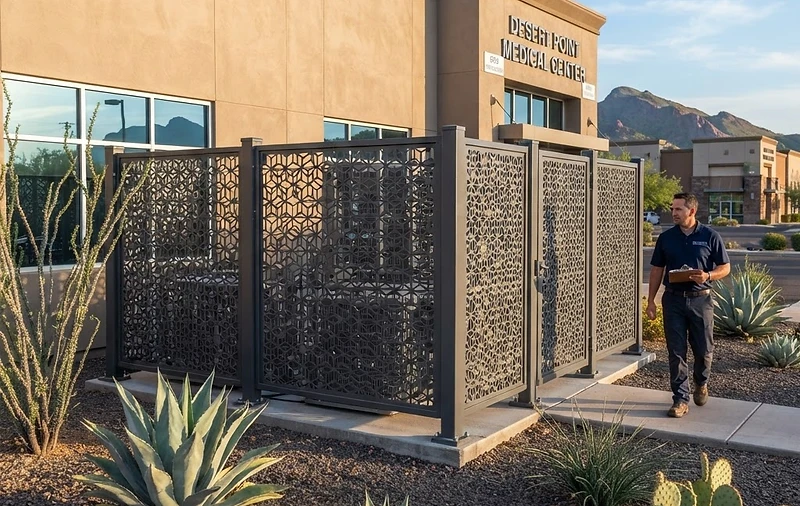

Every building has equipment it would rather not show — HVAC units, pool pumps, generators, electrical panels. KorFab equipment screening systems conceal them with laser-cut patterned panels that allow airflow while blocking the view. The result is a clean architectural screen that meets equipment ventilation requirements without looking like an afterthought.
Built from architectural-grade aluminum with wind-rated posts, our systems scale from a single pool pump enclosure to a full rooftop equipment screen. Every panel is cut on a 6KW laser, finished in any Cardinal powder coat color, and inspected in our Phoenix shop before it ships nationwide.
Rooftop and ground-level screening

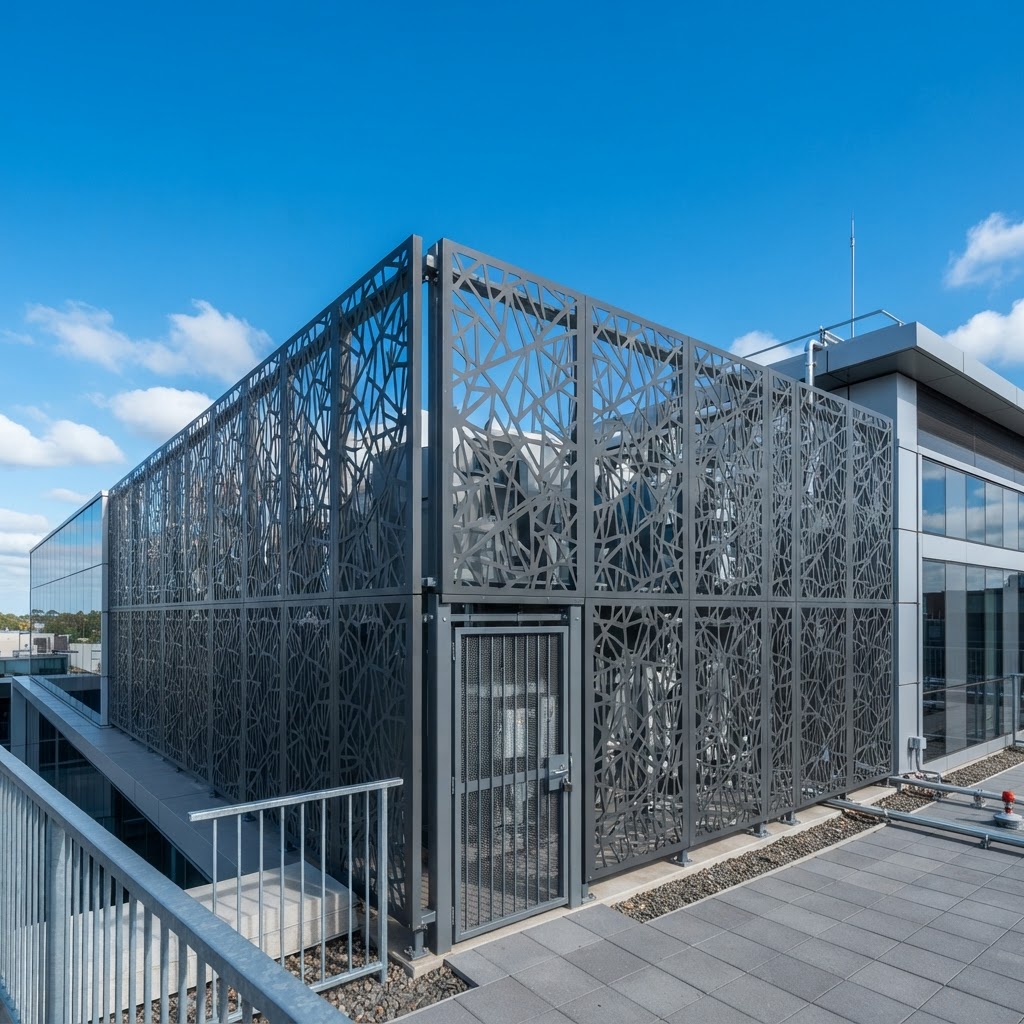

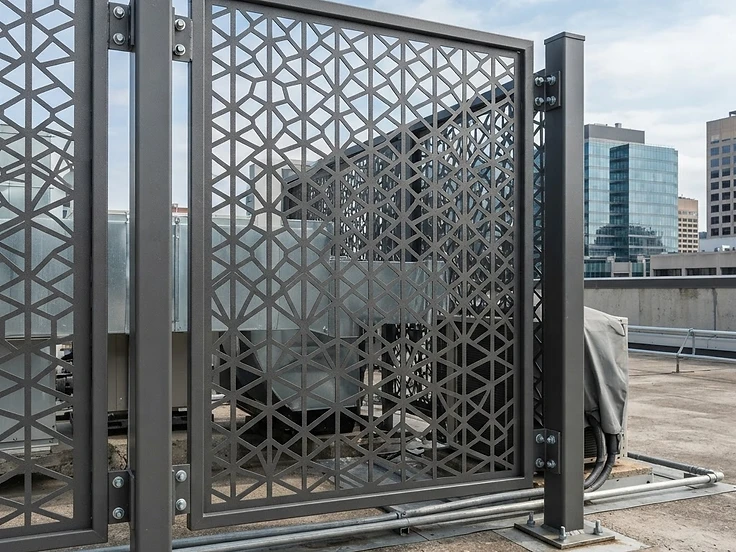

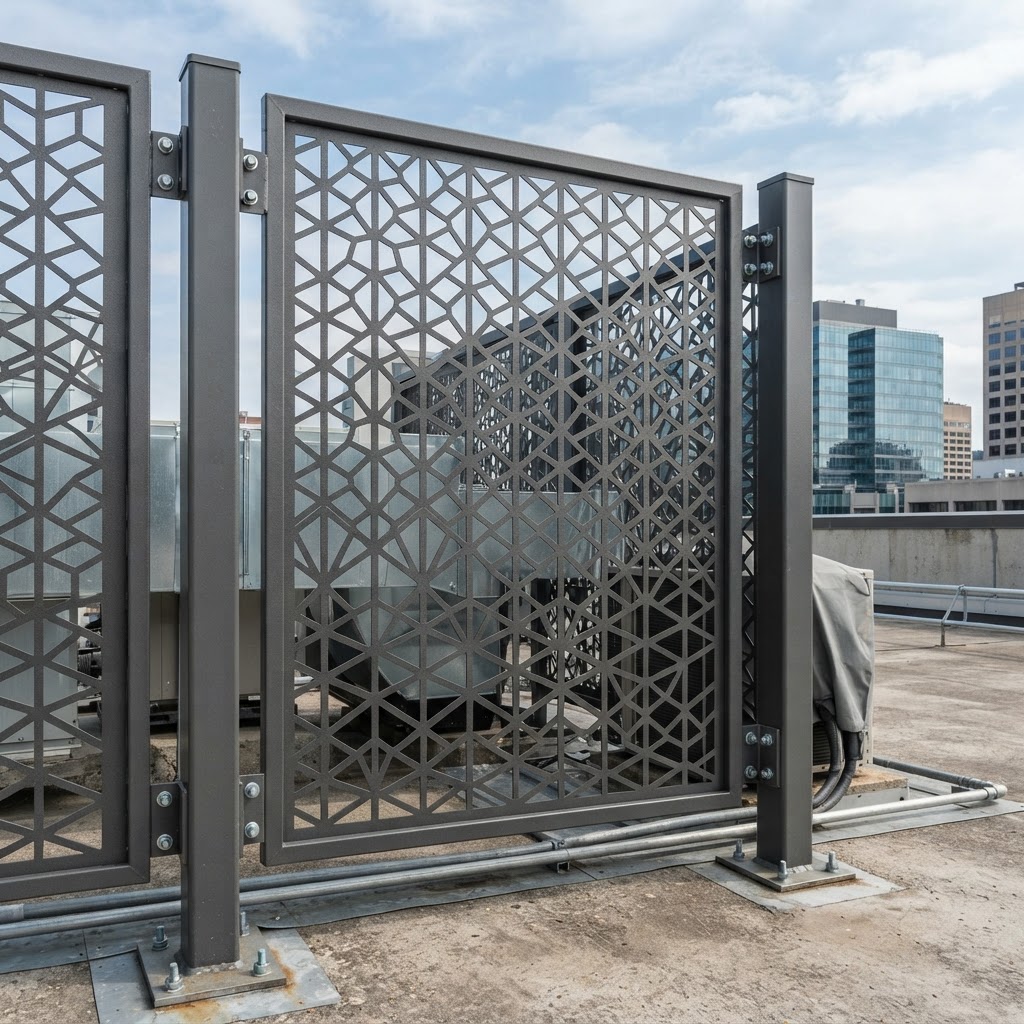

Rooftop Equipment Screening
Wind-rated screen systems for rooftop HVAC, mechanical, and electrical equipment. Posts rated to 60 PSF (96″) and 31 PSF (120″) for exposed rooftop locations.
- Wind-rated posts
- Airflow-permitting patterns
- Heights to 10′

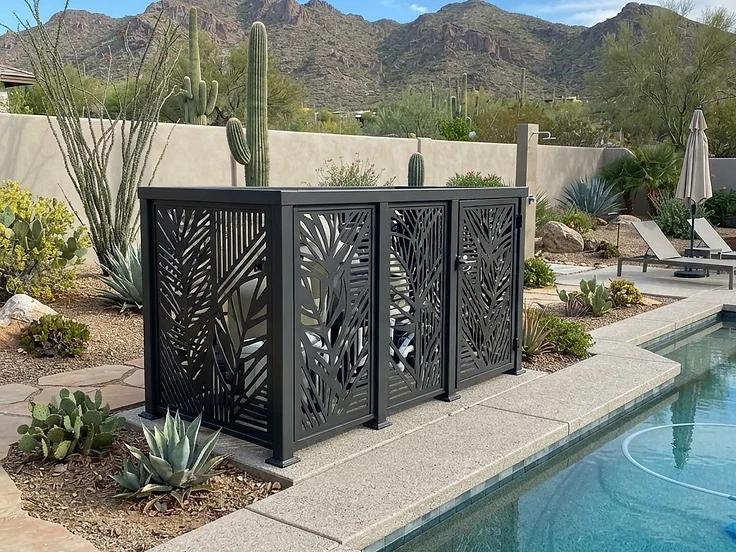

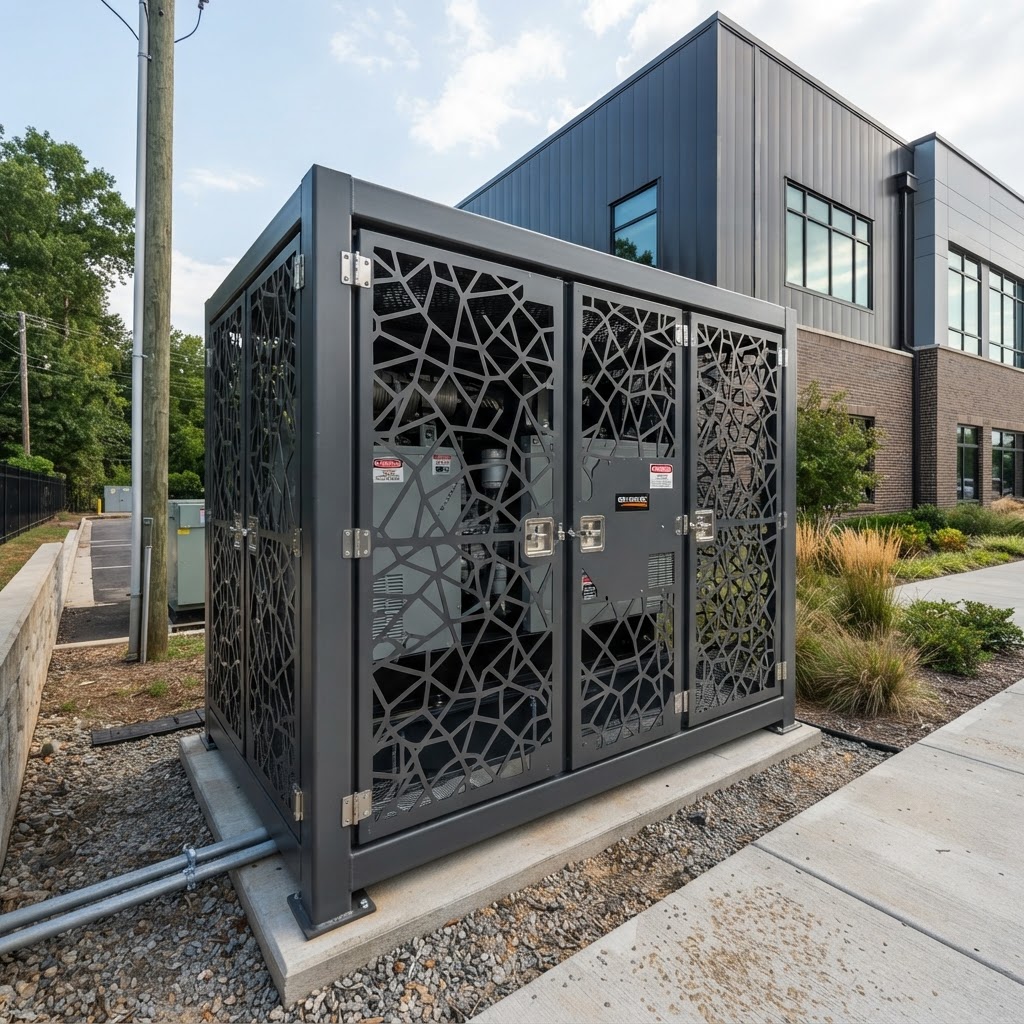

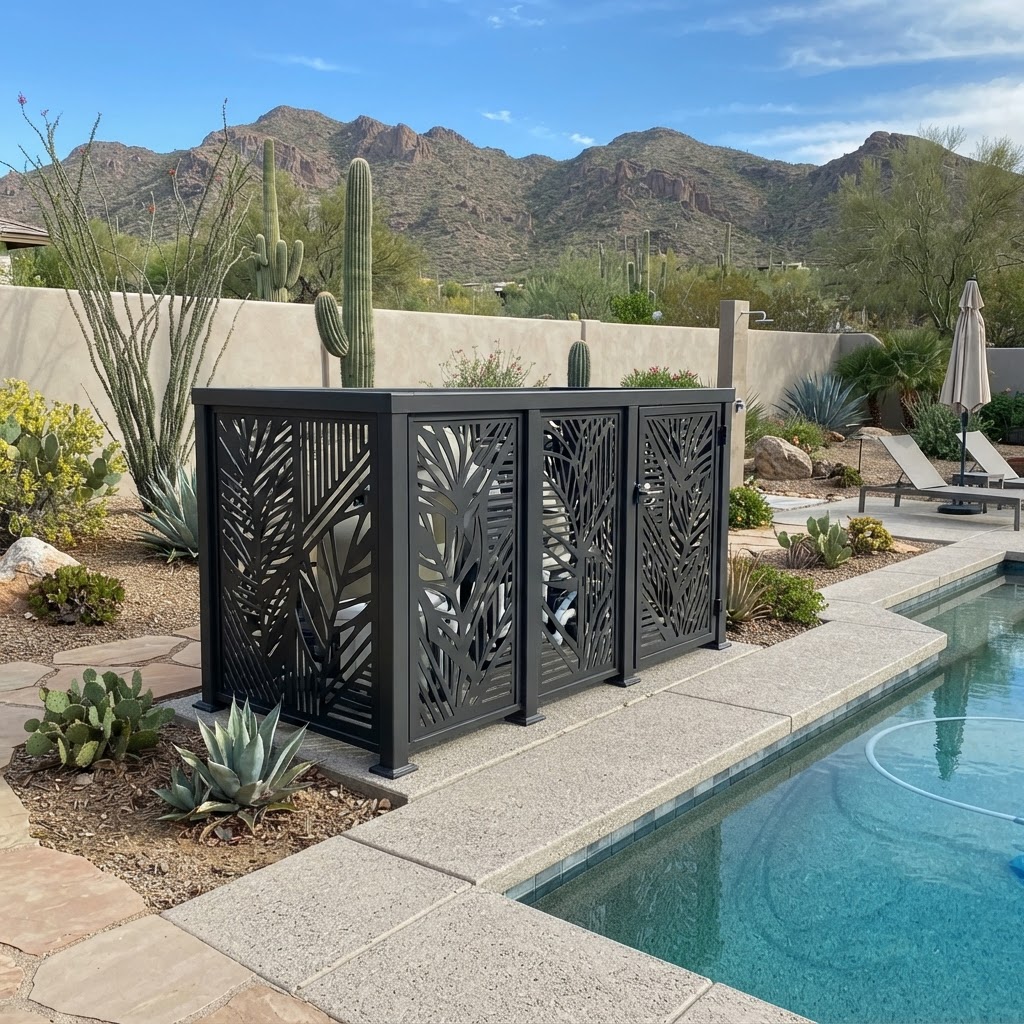

Ground-Level Equipment Screening
Post-and-panel screen systems for ground-level HVAC, pool pumps, generators, and electrical equipment. Modular construction adapts to any equipment footprint.
- Modular post-and-panel
- Any equipment footprint
- Gates available for access
Your vision, fabricated to spec
Every equipment screening systems is built to your exact specifications — pattern, dimension, finish, and material. From a single custom panel to a full building envelope, we bring your design to life with precision fabrication and infinite range.
Custom Patterns
Bring a CAD file, sketch, reference image, or logo — our team develops fabrication-ready patterns. Or choose from our standard library of organic, geometric, and linear designs.
Custom Dimensions
Any panel size, any height, any configuration. Modular post-and-panel systems or one-off panels tailored to your exact field conditions.
Custom Finishes
Any Cardinal powder coat color — superdurables, metallics, blacks, and custom color matching. Screen colors are approximate; request a physical swatch for verification.
Custom Materials
Architectural-grade aluminum (5052-H32), mild steel, Corten, and stainless — selected for your environment, application, and performance requirements.
Rapid Turnaround
Most orders are cut, finished, inspected, and ready to ship in about a week — palletized and packaged for safe transit to any U.S. jobsite.
Don't see your exact configuration? We build custom every day.
Built to install with ease
Every system ships pre-drilled, labeled, and ready to mount — no onsite welding, no fabrication, no guesswork.
Download 3-Part Spec- Pre-drilled panels, posts, and hardware
- Modular post-and-panel construction
- Airflow-permitting pattern options
- No onsite welding or fabrication
- Installation guides included
- Project-specific expert support
Built for rooftop and exposed locations
Our equipment screening systems use the same robust post design as our screen systems — mechanically fastened connections and expanded load capacity for confident use on rooftops and exposed ground-level locations, including high-wind regions.
Hardware & mounting options
Inset Mount Brackets
An expressed element that standardizes installation, increases corrosion resistance, and enhances the overall aesthetic. Brackets come in standard frame finishes, matched to the post color.
Direct Mount
As simple as it gets — the appropriate fastener for your substrate with pre-drilled panels for even spacing and painted screw heads that coordinate with the panel finish.
Artistry. Dependability. Durability.
Premium Metals
Architectural-grade aluminum and steel built for performance, corrosion resistance, and longevity.
Artistic Patterns & Finishes
Laser-cut artistry and powder-coat finishes that elevate the aesthetic vision for your space.
In-House Fabrication
Full control from file review to final inspection on our Phoenix shop floor — no outsourcing.
Nationwide Delivery
Palletized, packaged, and shipped to any U.S. jobsite — ready to install, ready in about a week.
See our equipment screening systems in the field
A pattern for every need
Explore our laser-cut pattern library — organic, geometric, linear, and fully custom.
Equipment Screening Systems for your area
Cut, finished, and inspected in our Phoenix, Arizona shop — then palletized and shipped to your jobsite, anywhere in the U.S. Most orders are ready to ship in about a week.
Find your city
Common questions
Ready to specify equipment screening systems?
Share your project details — we'll deliver a precise quote, timeline, and fabrication plan.
